Street Maps

A map an agent draws is an HTML asset that loads a map runtime and a street basemap from this deployment. The platform serves both: the runtime ships in the portal build, and the basemap is an extract of OpenStreetMap the platform cuts to the regions you choose and writes to your own bucket. No map view and no thumbnail calls a third party; the only outbound request is the fetch that builds a region, made when an administrator saves one.

flowchart LR
  P["Protomaps daily build<br/>or your mirror"] -- "range reads<br/>(fetch only)" --> F["fetch<br/>one replica, under a lock"]
  F -- "streamed write" --> B[("your bucket<br/>maps/regions/…")]
  U["your .pmtiles file"] -- "upload by hand" --> B2[("your bucket<br/>maps/uploads/")]
  B --> R["/portal/maps/{id}.pmtiles<br/>served by range"]
  B2 --> R
  V["/portal/vendor/maplibre/<br/>runtime, style, glyphs"] --> A["map asset<br/>asset page, share link, thumbnail"]
  R --> A

State and county maps need none of this. The US boundaries ship with the runtime, and an agent draws a value by state or county from them with maps turned off.

Turning maps on

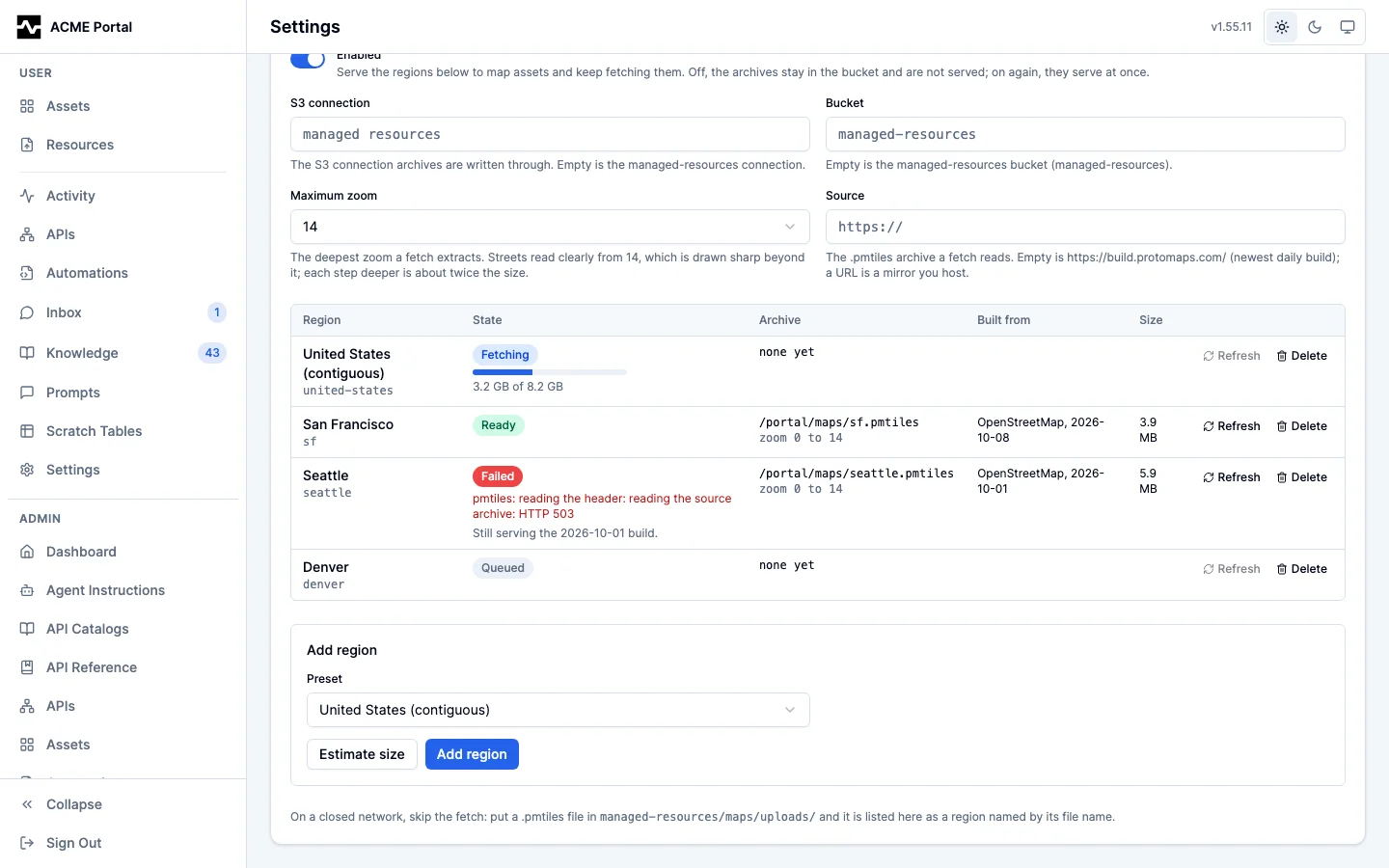

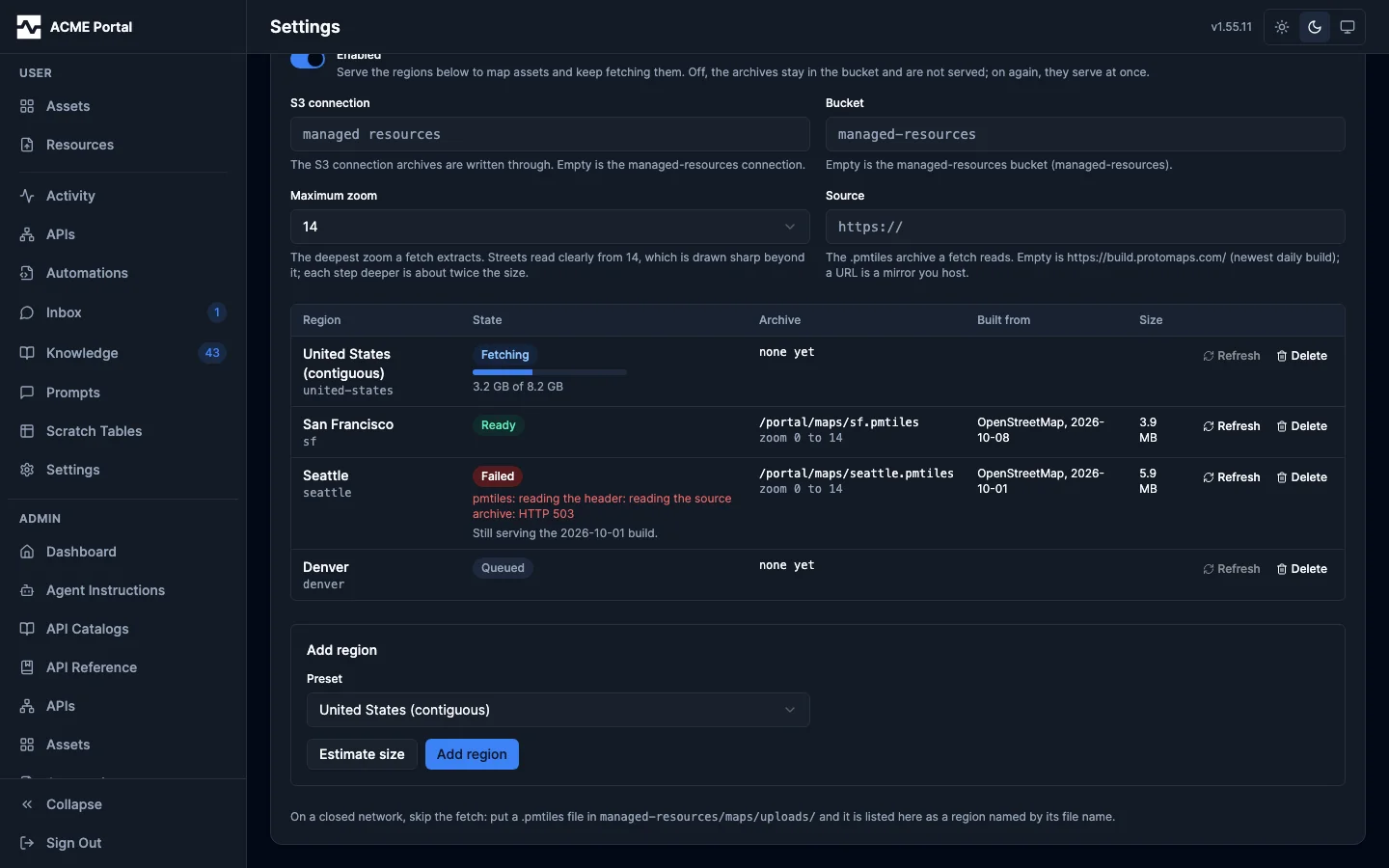

Maps are off by default. Open Admin > Settings > Maps (/portal/admin/settings/maps), or use the admin API:

Setting	Default	What it is
Enabled	off	Serve the regions, run the fetch, and list the regions on the maps knowledge page. Off, the archive routes answer 404 and the archives stay in the bucket.
S3 connection	the managed-resources connection	The S3 toolkit instance archives are written through.
Bucket	the managed-resources bucket	Where archives are written.
Maximum zoom	14	The deepest zoom a fetch extracts, 1 to 15.
Source	the newest Protomaps daily build	A URL of a .pmtiles archive to extract from instead, such as a mirror you host.

A change to the maximum zoom or the source applies to the next fetch of each region. A change to the connection or the bucket leaves the archives already written where they are: refresh each region to write it to the new place.

Then add a region: a preset (the contiguous United States is offered first, then Alaska, Hawaii, Puerto Rico, Canada, Mexico, the United Kingdom and Ireland, Europe and Australia) or a custom box with an id, a name and its west, south, east and north edges in degrees. More than one region may be kept. A region's id is its archive's name at /portal/maps/{id}.pmtiles.

Saving a region queues its fetch. The settings page shows its state as it moves: Queued, Fetching with how much of the archive is written, Ready with the build it came from, its zooms and its size, or Failed with the reason. Estimate size reports what a region would be before it is saved.

How large a region is

An archive's size is known before a byte of tile data is copied, and the estimate is exact. Measured against the 2026-10-08 Protomaps build for the contiguous United States:

Maximum zoom	Archive size	Directory entries
12	1.9 GB	250,892
14	8.8 GB	3,677,037
15	18.8 GB	13,719,485

Streets read clearly from zoom 14, and the runtime draws zoom-14 tiles at 15 and beyond, which is why 14 is the default. A city at zoom 14 is a few megabytes.

What a fetch does

A fetch never downloads the source build, which is about 140 GB. It reads the build's header and the directories that address the region's tiles by byte range, plans the extract, and then copies only those tiles, grouping neighbors into requests of up to 16 MiB with a few in flight. The archive is streamed straight into the bucket as a multipart upload; it needs no scratch disk.

• One replica fetches. A pass takes a PostgreSQL advisory lock; a replica that finds it held skips the pass. A fetch left behind by a replica that died is queued again by the next pass.
• A refresh replaces the archive only when the new one is complete. The new archive is written beside the one being served, and the swap is the region's row. A refresh that fails leaves the previous build serving and records why.
• The source is fixed for the fetch. The newest daily build is resolved from https://build-metadata.protomaps.dev/builds.json when the fetch starts, since Protomaps keeps a week of daily builds and does not promise their URLs. Every read after the first asks for the same version of the file (If-Match); a source replaced mid-fetch fails the fetch rather than mixing two builds.
• Stopping the platform mid-fetch cancels the fetch, removes what it wrote, and leaves the region queued for the next pass on any replica.
• A read that fails is retried three times, after 1, 4 and 9 seconds, when it timed out, was refused with 429, or got a 5xx.
• Planning holds the region's directory in memory. For the contiguous United States the fetch peaked at about 350 MB at zoom 14 and about 950 MB at zoom 15, measured with GOMEMLIMIT set; give the platform's container room for it, or fetch at 14.

The fetch goes through the platform's outbound client, so it is traced and counted under http_client_requests_total{kind="maps"}, and its writes are counted under storage_operations_total{purpose="maps"}. The loop reports as background_loop_*{loop="map_fetch"}, and each region's fetch as map_fetch_region.

On a closed network

Skip the fetch. Build or copy a PMTiles version 3 archive elsewhere and put it in the bucket under maps/uploads/, named {id}.pmtiles, where the id is lowercase letters, digits and dashes. The next pass, within 30 seconds, reads its header and lists it as a ready region with the bounds, zooms and build date the archive carries; a file that is not an archive is listed as failed with the reason. Keep at most 100 files there: past one listing's worth, the scan records what it read and forgets nothing, and logs why. Replacing the file replaces the region; deleting it removes the region. To extract on a machine that can reach the internet, the pmtiles CLI does the same extract: pmtiles extract https://build.protomaps.com/20261008.pmtiles us.pmtiles --bbox=-125,24.4,-66.9,49.4 --maxzoom=14.

A mirror works too: set Source to the archive's URL on a host the platform can reach. It must answer byte ranges.

How a map reads it

Path	Session	What it answers
/portal/maps/regions	none	{"enabled": ..., "regions": [...]}: each ready region's id, name, url, bounds, zooms, build and size
/portal/maps/{id}.pmtiles	none	the region's archive, by byte range, with an ETag that changes when a refresh replaces it; 404 when maps are off or the region has no archive
/portal/vendor/maplibre/...	none	MapLibre GL JS 6.4.1, the PMTiles protocol 4.5.0, the Protomaps basemap style 5.7.2, its glyphs and sprites, TopoJSON client 3.1.0 and the us-atlas 3.0.1 boundaries, each with its license

The archive is public OpenStreetMap data and is read from a sandboxed asset frame, whose origin is opaque, and from public share links, so these paths need no session and answer CORS for any origin, without credentials, with Range allowed and Content-Range exposed. The share viewer's policy needs no change: an asset frame is an srcdoc document that inherits the viewer's connect-src 'self', which grants the platform's own origin on a plaintext deployment too.

The glyphs and sprites the style draws with are not published to npm; they are checked in under ui/vendor/maplibre/ at a pinned commit of protomaps/basemaps-assets by scripts/sync-map-assets.sh. The style asks for a town hall icon that sheet does not have, so a town hall's label is drawn without an icon and the browser console notes the missing image once.

Thumbnails

The tile worker draws a map asset like any HTML asset, in the platform's headless Chrome, which draws WebGL in software (SwiftShader). The page's reads of /portal/vendor/maplibre/ and /portal/maps/ are answered by the platform in-process, by range, so the tile shows the basemap and the data in light and dark with no outbound request. The tile is taken once every map on the page has finished drawing (MapLibre's idle), bounded at 15 seconds after the page's other files load, so a map whose tiles never arrive still gets a tile (#2087). Export PDF reads them the same way, and prints a document that draws a map once every map on it has finished drawing (MapLibre's idle, bounded at 20 seconds), on one page the size of its screen layout, since a map fitted to the screen's width and printed on a narrower paper size would be cut at the page edge.

Telling agents

The platform ships a knowledge page, mcp:knowledge_page:platform-maps, and platform_info names it to any caller that can save an asset. The page lists the regions this deployment serves, or says plainly that it has no basemap, and is rewritten whenever maps are turned on or off or a region becomes ready or is removed. It shows the document skeleton, how to draw points, a route and areas, how to fit the view, that the OpenStreetMap attribution stays on, what to do when no region covers the data, and a state choropleth from the served boundaries.

Admin API

Method and path	What it does
GET /api/v1/admin/settings/maps	the settings, every region with its state and archive, the presets, the upload prefix
PUT /api/v1/admin/settings/maps	enabled, s3_connection, bucket, max_zoom, source_url
POST /api/v1/admin/settings/maps/regions	{"preset": "united-states"}, or {"id", "name", "bounds": {"min_lon", "min_lat", "max_lon", "max_lat"}}; 201 with the queued region
POST /api/v1/admin/settings/maps/regions/{id}/refresh	queue a fetch of the newest build at the current maximum zoom; 409 while the region is being fetched
DELETE /api/v1/admin/settings/maps/regions/{id}	remove the region and its archive (an uploaded file included)
POST /api/v1/admin/settings/maps/estimate	{"preset"} or {"bounds"}; the exact size, tile count and build, writing nothing

The settings live in the maps row of platform_settings; regions in the map_regions table (migration 000184).

Out of scope

The platform draws the geometry the data has. Turning a list of stops into the streets between them is a routing engine, and turning addresses into coordinates is a geocoder; neither is part of this. Satellite imagery, terrain and hillshade are not served.
