Does a semantic knowledge layer make an agent measurably better? A reproducible benchmark

A neutral evaluation report for the mcp-data-platform knowledge layer. Every statistic below is recomputed from raw run data committed under bench/results/ by the notebook bench/reports/knowledge-layer/report.ipynb; each claim cites the run directory it comes from.

Author	Craig Johnston (cj@imti.co), Deasil Works, Inc. / txn2 — ORCID 0009-0000-9041-4079
Published	2026-07-19; version 2.0.1 published 2026-08-01
Report version	2.0.1
DOI	10.5281/zenodo.21438044 (concept DOI, resolves to the latest version). This version: 10.5281/zenodo.21751635.
Subject under test	The platform's semantic knowledge layer (cross-enrichment, search, and the memory / apply_knowledge lifecycle), not the whole platform.
Platform builds	This report spans two platform generations and the sections are not mutually comparable. Section 5 (lifecycle) ran on v1.118.0-4-g445e3abc; Sections 3 and 4 are pinned to release tag v1.102.2, whose application code is byte-identical to the cold-start build. Within that tag the ablation ran on v1.102.0 platform logic and cold-start on v1.102.1 (the superseded v1.1 lifecycle run was also v1.102.0); the only deltas from the tag are portal-pagination plumbing (#974) and a pprof diagnostic endpoint, neither of which is in the cross-enrichment, search, or knowledge-lifecycle path under test (Section 6). Exact build strings, commits, seeds, and task-set hashes are pinned in each run's manifest (Section 9).
How to cite	Section 10

Abstract

We evaluate whether a semantic knowledge layer, placed between a large language model and a data warehouse, changes the model's task accuracy on data-analysis questions, and whether an accumulate-and-reuse knowledge loop lets the same platform improve over time. Two complementary studies are reported. (1) A single-shot ablation isolates four platform configurations (raw tools; enrichment; knowledge and search; full lifecycle) on a fixed, seeded 87-task suite with three repeats per task. On knowledge-trap questions, which are answerable plausibly but wrongly without business context, accuracy rises from 42.7% (raw tools) to 98.7% (knowledge layer), a difference of +56.0 points with a 95% bootstrap confidence interval of +44 to +67. On plain discovery and numeric questions, where no business context is required, the configurations are statistically indistinguishable, so the effect is specific to knowledge-gated tasks and is not a general accuracy uplift. (2) A cold-start study starts from an empty enrichment layer and teaches six facts one at a time, re-evaluating a fixed trap suite after each promotion. Accuracy climbs from an empty-layer baseline of 48.0% to 90.7% after five promotions (headline run, three repeats per checkpoint), and the empty-layer floor reproduces across five independent runs (44.0, 44.0, 47.8, 48.0, 52.0 percent). The per-trap-class trajectories show each taught fact moving at or shortly after its own promotion checkpoint, which is the mechanistic core of the result. We report every number with a reproducible confidence interval, enumerate the validity signals and threats, and ship a notebook that regenerates every figure from the committed data with no network access and no API key.

1. Motivation

A semantic data platform inserts a metadata and knowledge layer between an agent and a query engine. The platform's central claim is that automatically attaching business context to tool results, and letting an agent search a curated knowledge base, makes the agent answer data questions correctly when it would otherwise answer plausibly but wrongly. That claim is testable. The failure mode it targets is specific: a monetary column stored in integer cents that the model reads as dollars; a revenue figure computed gross when the house definition is net of discounts; a "current" table that is actually a deprecated extract. In each case the model can produce a confident, well-formed, wrong answer, and no amount of raw SQL skill fixes it, because the missing input is a fact about the data, not a fact about SQL.

Two questions follow. First, holding the model and the task set fixed, does adding the platform's layers change accuracy, and on which kinds of question? This is a single-shot ablation: same model, same questions, different platform configuration. Second, does the platform's knowledge loop (capture a fact, promote it into a durable sink, surface it on later sessions) let the same platform get better over time from an empty starting state? This is a longitudinal study, and it is the more demanding claim, because it exercises the whole loop end to end rather than a pre-seeded snapshot of it.

2. Experimental design

2.1 Configurations (arms)

The ablation compares four configurations of the same platform. The configurations differ only by configuration profile, not by code path; the config surface is the ablation mechanism (bench/docs/knowledge-layer-protocol.md, "Arms").

Arm	Name	What the agent is connected to
a0	raw tools	The underlying data tools directly (trino_*, s3_*); no semantic provider, no search, all cross-enrichment off (bench/docs/knowledge-layer-protocol.md, "Arms").
a1	enrichment	a0 plus semantic cross-enrichment: tool results carry DataHub context automatically, but the agent still has no search and no datahub_* tools (bench/docs/knowledge-layer-protocol.md, "Arms").
a2	knowledge	a1 plus the search tool, the search-first gate, and curated knowledge pages (bench/docs/knowledge-layer-protocol.md, "Arms").
a3	lifecycle	a2 plus the memory and apply_knowledge lifecycle (bench/docs/knowledge-layer-protocol.md, "Arms").

The arms without a discovery tool (a0, a1) disable the search-first gate, which is not persona-aware (bench/docs/knowledge-layer-protocol.md, "Arms").

2.2 Task suites

The phase-2 task set is 87 tasks across three suites (bench/docs/knowledge-layer-protocol.md, "Seeded ground truth"), each run three times per arm, for 261 graded attempts per arm.

• S1, discovery (17 tasks). "Which table answers X", graded by entity-alias match. Some tasks are knowledge-dependent (bench/docs/knowledge-layer-protocol.md, "Seeded ground truth").
• S2, analytical accuracy (45 tasks). Exact numeric questions at BIRD-style tiers (single-table, join, temporal, cross-tab, top-N); four tasks emit SQL graded by execution-result comparison. S2 states monetary units explicitly, so it measures query formulation, not the units trap (bench/docs/knowledge-layer-protocol.md, "Seeded ground truth").
• S3, knowledge traps (25 tasks). Each task is answerable plausibly but wrongly without the knowledge layer, across six seeded trap classes (bench/docs/knowledge-layer-protocol.md, "Seeded ground truth"):

Trap class	The fact the agent must know
units_cents	Monetary columns are integer cents; divide by 100 (bench/docs/knowledge-layer-protocol.md, "Seeded ground truth").
net_revenue	Revenue is amount - discount over completed orders only; the gross and net leaders differ by construction (bench/docs/knowledge-layer-protocol.md, "Seeded ground truth").
fiscal_calendar	The fiscal year runs Feb 1 to Jan 31 (bench/docs/knowledge-layer-protocol.md, "Seeded ground truth").
freshness_cutoff	The daily index stops at 2025-11-30; post-cutoff questions must use raw orders (bench/docs/knowledge-layer-protocol.md, "Seeded ground truth").
tier_boundary	A "key account" is any plus- or enterprise-tier customer (bench/docs/knowledge-layer-protocol.md, "Seeded ground truth").
deprecated_table	legacy_orders is a partial, deprecated extract (bench/docs/knowledge-layer-protocol.md, "Seeded ground truth").

2.3 Grading

Answers are scored by a deterministic grader that reads only the text after the last FINAL ANSWER: marker, and only its first line, so trailing commentary cannot flip a grade (bench/internal/grade/grade.go:6). Numeric answers match within an absolute tolerance, preferring decimal-bearing candidates over bare integers (grade.go:53). Entity answers are correct only when a correct alias appears and no wrong alias does (the wrong-alias veto), matched on word boundaries so, for example, "East" does not veto "at least" (grade.go:74, grade.go:103). SQL-producing tasks are graded by execution-result comparison in the BIRD convention (Li et al., 2023): two result sets are equal as multisets of rows compared by sorted cell values, so column aliasing and row or column ordering do not matter (bench/internal/grade/execsql.go:76). The reference and candidate queries execute through a dedicated admin-credentialed session, separate from the attempt's own session, so grading does not perturb the attempt's audit accounting (bench/docs/knowledge-layer-protocol.md, "Measurement").

A pinned LLM judge (claude-sonnet-5, bench/judge/rubric.yaml:14) scores only the caveat items a deterministic grader cannot: whether an S3 answer carried the required caveat that makes it trustworthy (rubric.yaml:3). The rubric is versioned and ships with a 30-item human-labeled calibration set (bench/judge/calibration.yaml), and make bench-calibrate computes the judge's human-agreement rate to be published alongside any judged result (bench/docs/knowledge-layer-protocol.md, "Measurement"). The S3 accuracy figures in this report are the deterministic pass rates; the judge governs the separate caveat-quality axis.

2.4 Repeats, pass^k, and confidence intervals

Each task is attempted k = 3 times from independent identities. Two robustness views are reported: accuracy over all graded attempts, and pass^k (the reliability metric introduced by tau-bench, Yao et al., 2024), the fraction of tasks whose all k repeats pass (bench/internal/report/compare.go:204). An errored attempt is never graded, so it can never claim pass^k.

Confidence intervals in this report are a percentile bootstrap over graded attempts (or, for the lifecycle rates, over protocol-runs) with a fixed resampling seed, so they are reproducible. The notebook uses 20000 resamples with a seed of 930 (the dataset seed); the benchmark harness itself uses 5000 resamples with the same seed and its own random source (bench/internal/stats/bootstrap.go:19). Point estimates are exact means and match the harness exactly; the interval endpoints from the two implementations agree to within a point or two, as expected from differing resample counts and random sources. These intervals quantify sampling variance over attempts; they do not model task-selection variance.

2.5 Identity pool

The search-first gate keys discovery on the authenticated user, not the MCP session (pkg/searchgate/searchgate.go:1, pkg/middleware/mcp_workflow_gate.go:11), so every attempt authenticates as its own pool identity. The committed pool holds 320 keys, sized to the thirty-protocol lifecycle suite at k = 5, its largest single consumer (bench/docs/knowledge-layer-protocol.md, "Measurement"); it held 264 for the v1.1 runs and was grown for the Section 5 re-run. The lifecycle suite consumes two identities per attempt (a teacher and a learner) so discovery scope never leaks between them (bench/docs/knowledge-layer-protocol.md, "S5 memory-insight-knowledge lifecycle (#944)").

2.6 Two client paths, never mixed

The ablation and lifecycle suites ran on the Anthropic API adapter; the cold-start study ran on the claude-cli adapter, which is subscription-funded. The two client paths are not accuracy-comparable: claude -p reinserts its own system prompt, tool policy, and retries, which shift across client releases (bench/docs/knowledge-layer-protocol.md, "claude-cli adapter (subscription, no API key)"). The harness records client_version and refuses to fold the two into one leaderboard. We follow the same rule: the ablation and cold-start results are complementary sub-studies, reported separately, and no cross-path accuracy comparison is drawn.

3. Results: single-shot ablation (S1 to S3)

Source: bench/results/phase2-anthropic-k3/full-a{0,1,2,3}/results.json. Model claude-sonnet-5, k = 3, 261 graded attempts per arm, platform build v1.102.0-9-gadfb9d90-dirty.

3.1 Overall

Arm	Graded	Accuracy (95% CI)	pass^k	Median calls	Median wall (s)
a0	261	83.1% [79-87]	80.5%	7	14.0
a1	261	87.4% [83-91]	86.2%	7	13.9
a2	261	98.5% [97-100]	97.7%	9	27.4
a3	261	98.1% [96-100]	96.6%	9	27.0

The overall accuracy is dominated by S1 and S2, which most arms already answer correctly, so the aggregate understates the effect. The discriminating suite is S3.

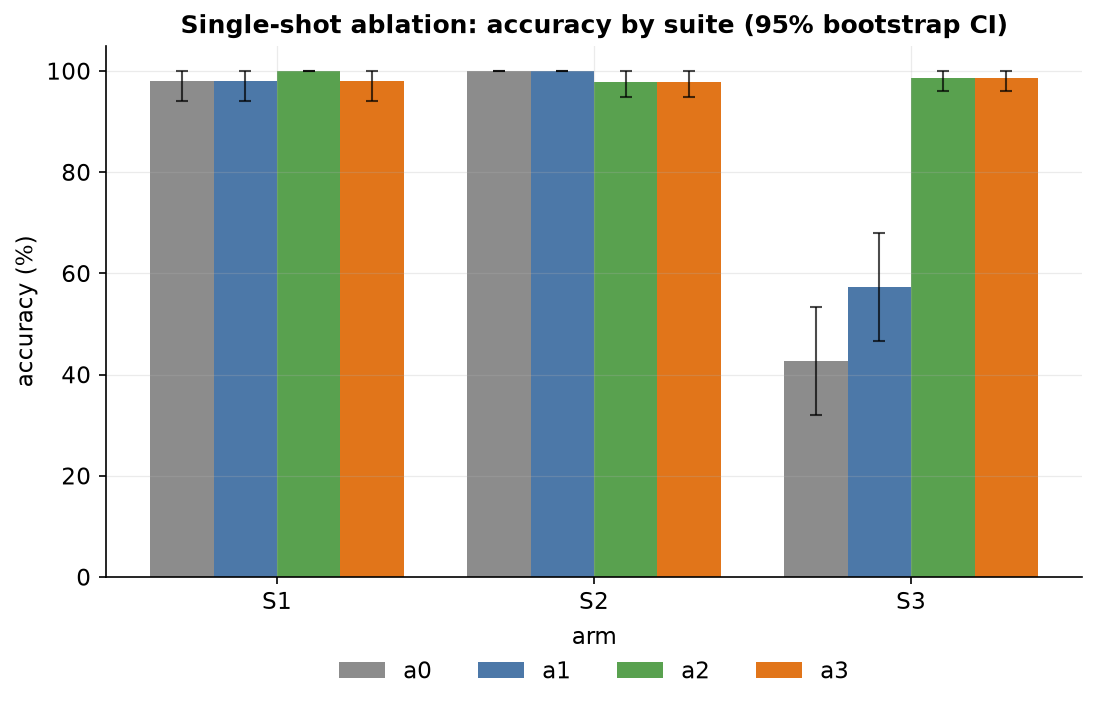

3.2 By suite

Suite	a0	a1	a2	a3
S1	98.0% [94-100]	98.0% [94-100]	100.0% [100-100]	98.0% [94-100]
S2	100.0% [100-100]	100.0% [100-100]	97.8% [95-100]	97.8% [95-100]
S3	42.7% [32-53]	57.3% [47-68]	98.7% [96-100]	98.7% [96-100]

On S1 (discovery) and S2 (numeric formulation with units stated), the four arms are statistically indistinguishable, and the knowledge arms cost a small amount of extra tool traffic (median 9 calls versus 7, roughly double the wall time) for the search-first workflow. On S3 (knowledge traps), the knowledge layer moves accuracy from 42.7% to 98.7%.

3.3 The knowledge effect and its confidence interval

The S3 accuracy delta versus the raw-tools baseline, with a bootstrap CI on the difference:

Arm	S3 delta vs a0	95% CI
a1 (enrichment only)	+14.7 pts	[-1 to +31]
a2 (knowledge)	+56.0 pts	[+44 to +67]
a3 (lifecycle)	+56.0 pts	[+44 to +67]

Enrichment alone (a1) produces a positive but not statistically resolved shift (its interval includes zero). Adding search and knowledge pages (a2) produces a large, unambiguous effect. The lifecycle arm (a3) matches a2 here, which is expected: on single-session tasks the lifecycle has nothing pre-seeded to recall, so its value is what the cold-start and S5 studies measure, not what S1 to S3 measure.

3.4 Per-trap-class breakdown

Trap class	a0	a1	a2	a3	n per arm
deprecated_table	95.2%	95.2%	100.0%	100.0%	21
fiscal_calendar	0.0%	0.0%	100.0%	100.0%	15
freshness_cutoff	91.7%	100.0%	100.0%	100.0%	12
net_revenue	21.2%	48.5%	100.0%	100.0%	33
tier_boundary	0.0%	0.0%	93.3%	100.0%	15
units_cents	61.9%	88.1%	97.6%	97.6%	42

The breakdown is instructive about scope. Two classes, fiscal_calendar and tier_boundary, sit at 0% without the knowledge layer: the model cannot guess a fiscal-year boundary or a house tier definition, and no enrichment channel carries them either (both facts live only on knowledge pages), so only the search arms recover them. Two classes, units_cents and net_revenue, are partially recoverable by enrichment alone (a1 lifts units_cents from 61.9% to 88.1% and net_revenue from 21.2% to 48.5%), because those facts live in column and dataset descriptions that enrichment attaches. Two classes, deprecated_table and freshness_cutoff, are already near ceiling at a0, because the model can often infer them from the data itself. The knowledge layer's contribution is largest exactly where the model has no other route to the fact.

4. Results: cold-start knowledge growth

Source (headline): bench/results/cold-start-a3-20260717-142008-3064/results.json. Adapter claude-cli, model sonnet, k = 3, platform build v1.102.1-5-g96169337. The platform starts from an empty enrichment layer (entities present, no descriptions, tags, glossary, or knowledge pages). Six facts are taught one at a time; each captured insight is promoted to a sink (a DataHub aspect or a knowledge page), and the fixed 25-task S3 suite is re-run by a fresh, never-taught evaluator identity after each promotion. Checkpoint 0 is the empty-layer baseline (bench/docs/knowledge-layer-protocol.md, "Cold-start knowledge growth (#963)").

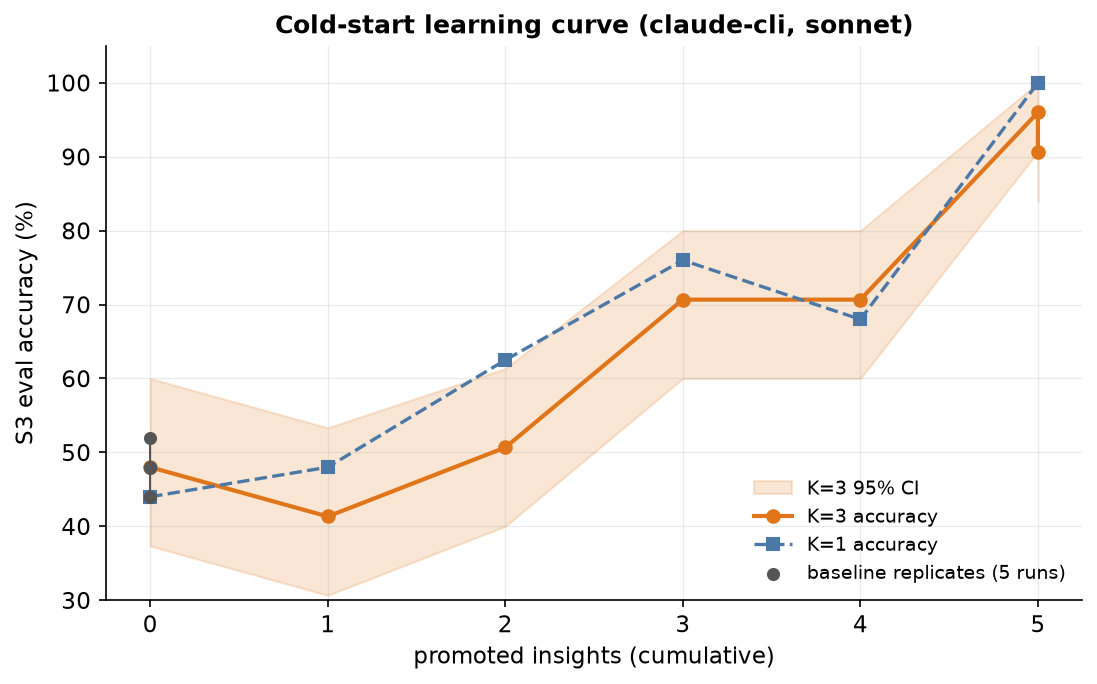

4.1 The learning curve

The headline k = 3 run climbs from a baseline of 48.0% to 90.7% after five promotions (a lift of +42.7 points), with 5 of 6 lessons captured and promoted and zero harness failures. The k = 1 run (bench/results/cold-start-a3-20260717-085742-89538/results.json) climbs from 44.0% to 100.0%.

Promoted insights	K=3 accuracy (95% CI)	K=1 accuracy
0 (baseline)	48.0% [37-60]	44.0%
1	41.3% [31-53]	48.0%
2	50.7% [40-61]	62.5%
3	70.7% [60-80]	76.0%
4	70.7% [60-80]	68.0%
5	96.0% [91-100]	100.0%
5 (final checkpoint)	90.7% [84-96]	100.0%

The aggregate curve is deliberately shown as it is, including a dip at the first checkpoint and a step down at the final checkpoint. The aggregate is noisy because it averages six trap classes with very different starting points; the dip at checkpoint 1 reflects run-to-run variance on classes the model already handled plus the fact that the first lesson (units_cents, a DataHub-sink fact) targets a class that was already partly correct at baseline. The signal is not in the aggregate; it is in the per-class trajectories (Section 4.3).

4.2 The empty-layer floor is reproducible

Checkpoint-0 accuracy across all five cold-start runs that recorded a baseline:

Run	Baseline
cold-start-a3-20260717-142008-3064 (k=3)	48.0%
cold-start-a3-20260717-085742-89538 (k=1)	44.0%
cold-start-a3-20260716-234306-5181 (k=1)	52.0%
cold-start-a3-20260716-115550-399 (k=1, interrupted)	47.8%
cold-start-a3-20260716-220857-52792 (k=1, interrupted)	44.0%

The empty-layer floor is 44.0, 44.0, 47.8, 48.0, 52.0 percent (mean 47.2%). That five-run spread of roughly 8 points is the noise floor against which the +43 to +56 point climb should be read.

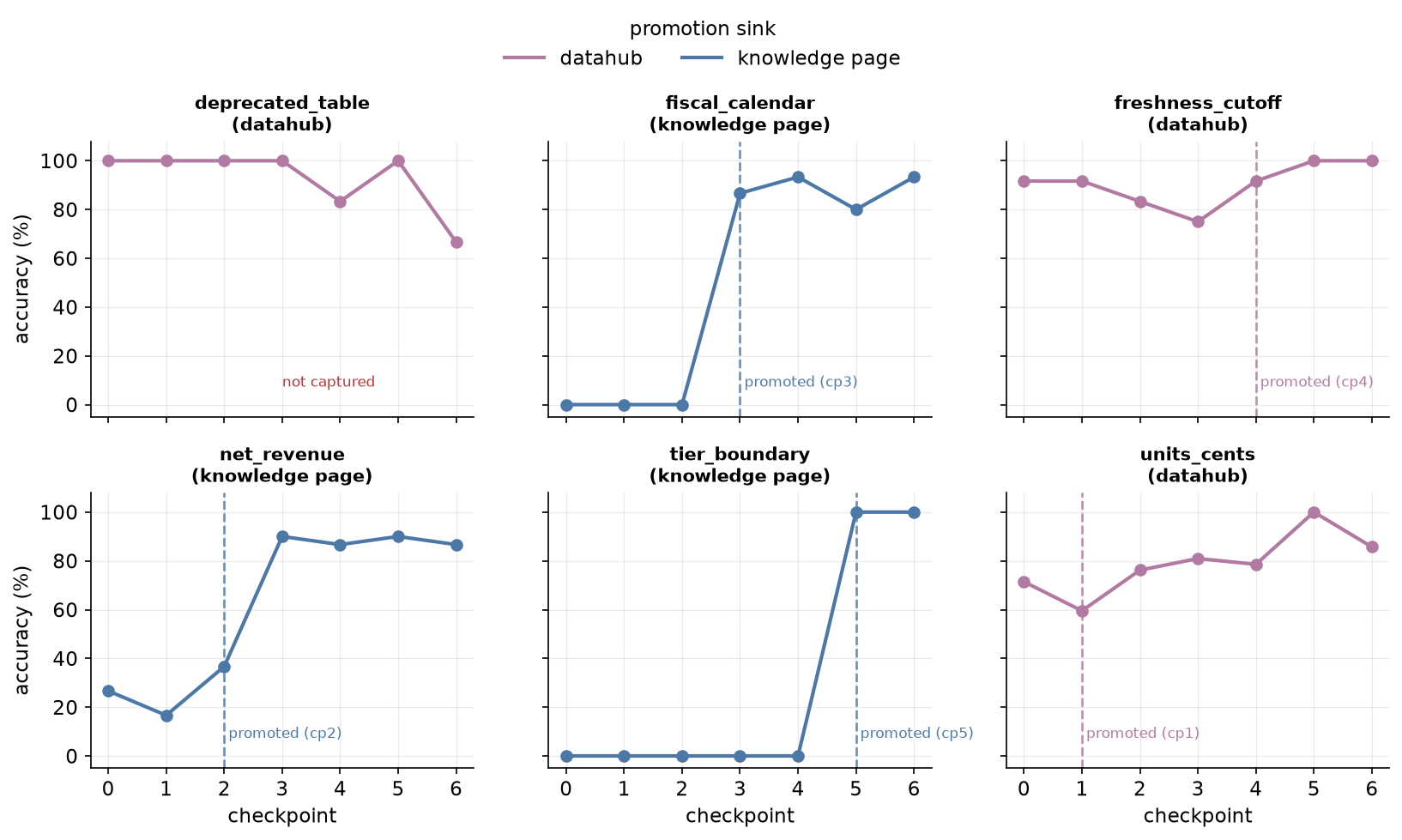

4.3 Per-trap-class trajectories: the mechanistic core

Each panel tracks one trap class across the seven checkpoints of the headline k = 3 run; the dashed line marks the checkpoint at which that class's lesson was promoted, colored by its sink.

• fiscal_calendar (knowledge page, promoted at checkpoint 3): 0% at checkpoints 0 to 2, then 86.7% at checkpoint 3, the checkpoint of its own promotion. A clean floor-to-ceiling unlock at the taught moment.
• tier_boundary (knowledge page, promoted at checkpoint 5): 0% through checkpoint 4, then 100% at checkpoint 5. Again a clean unlock at its own promotion.
• net_revenue (knowledge page, promoted at checkpoint 2): 26.7% at baseline, still 36.7% at checkpoint 2, then 90.0% at checkpoint 3. The unlock lags its promotion by one checkpoint.
• units_cents (DataHub sink, promoted at checkpoint 1): already 71.4% at baseline (partly inferable), noisy around its promotion, ending at 85.7%.
• freshness_cutoff (DataHub sink, promoted at checkpoint 4): already 91.7% at baseline; the model largely infers the cutoff from the data, so its lesson adds little headroom.
• deprecated_table (DataHub sink, not captured): the teacher never captured this lesson (Section 5), yet the class stays high throughout because the model already flags the deprecated extract from the data; its final- checkpoint reading of 66.7% is within the small-sample noise of a six-attempt class.

The two classes that begin at the floor and unlock cleanly at their own promotion checkpoint (fiscal_calendar, tier_boundary) are both knowledge-page sinks whose facts are otherwise unguessable. The DataHub-sink classes in this run were either already near ceiling at baseline (freshness_cutoff, deprecated_table) or partly inferable (units_cents), so their lessons had little floor-to-ceiling room to demonstrate an unlock. This asymmetry is an observation about which facts were unguessable in this particular curriculum, not a general delivery claim; a controlled delivery comparison would need the same fact taught through each sink, which this run does not provide. The confound is stated in Section 6.

4.4 A capture-only ablation

One run captured five of six lessons but promoted none of them, because every sink write failed before a subsequent fix (bench/results/cold-start-a3-20260716-234306-5181/results.json; lessons_captured = 5, promoted = 0/6, harness_failures = 5). It still climbed from 52.0% to 96.0%. This is a legitimate, if unplanned, ablation: with promotion disabled, captured insights still reach later evaluators through the persona-scoped captured-memory channel (Section 6), so the curve rises without any DataHub or knowledge-page write. It is reported here as evidence that captured memory is itself a delivery channel, and as a caution that a rising cold-start curve does not by itself prove that promotion to a durable sink occurred.

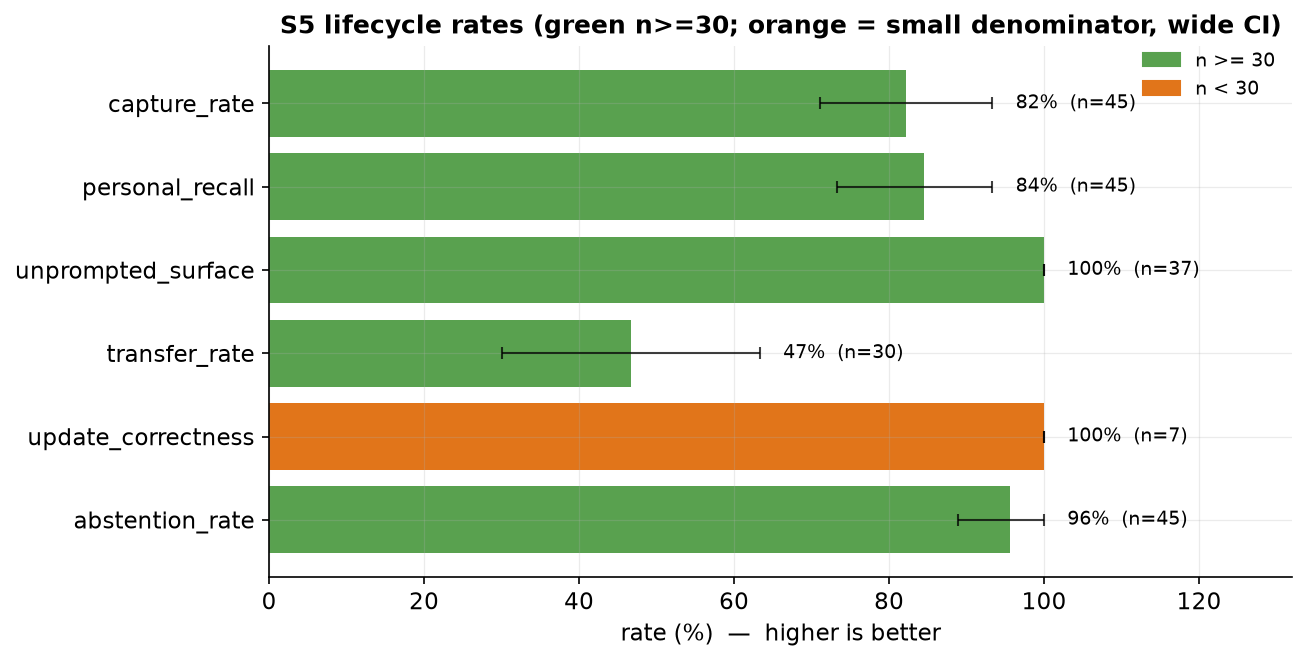

5. Results: memory and knowledge lifecycle (S5)

Source: bench/results/s5-anthropic-k5/lifecycle-a3-k5.json. Anthropic API, model claude-sonnet-5, 30 protocols, k = 5 as five independent passes merged (149 protocol-runs after one harness exclusion), platform build v1.118.0-4-g445e3abc. Each protocol teaches a fact with one identity and tests whether a different identity can reuse it, plus supersede and abstention checks.

This section is measured on a different platform build from Sections 3 and 4. Report version 1.1 published lifecycle results from v1.102.0 at k = 3 over fifteen protocols. Two product changes have landed since and both act on paths this suite measures: applied insights became searchable and fetchable across identities (#1129), and catalog dataset descriptions gained a platform-side semantic index (#1141). Differences from the v1.1 figures below are therefore across-code, not the effect of a larger sample. The ablation and cold-start sections are unchanged from v1.1 and still describe v1.102.x.

Metric	Rate (95% CI)	num/den	v1.1 (v1.102.0, k=3)	Meaning
capture_rate	91.9% [87.2-96.0]	137/149	82.2%	The agent recorded and entity-linked the taught fact.
personal_recall	95.3% [91.9-98.0]	142/149	84.4%	A fresh same-identity session answered the fact-dependent question correctly.
unprompted_surface	100.0%	137/137	100.0%	Among captured runs, search surfaced the saved memory unprompted.
transfer_rate	98.9% [96.8-100.0]	94/95	46.7%	A different identity answered correctly after promotion to shared knowledge.
update_correctness	100.0%	41/41	100.0% (7/7)	A correction flipped a later recall to the new value.
duplicate_rate	22.0% [9.8-34.1]	9/41	42.9%, CI [14-86] on n=7	A supersede that left more than one live insight. Lower is better.
abstention_rate	92.6% [87.9-96.6]	138/149	95.6%	The agent refused to fabricate a fact it was never taught.
pass^k	63.3% [46.7-80.0]	19/30	20.0%	All k attempts passed the full applicable lifecycle.

The small-denominator limitation named in v1.1 is resolved. Supersede now carries 41 observations rather than seven, and duplicate_rate is a point estimate at 22.0% with a 24-point interval, replacing a 72-point range that spanned most of the scale. update_correctness remains at ceiling across a denominator six times larger.

The cross-identity transfer gap is closed on current code. v1.1's reproducible lifecycle finding was that a fact promoted to shared knowledge was reused by a different identity under half the time (46.7%). On v1.118.0 it is 98.9% [96.8 to 100.0]. #1129 moved the visibility boundary to the act of applying an insight, which is the exact path the 46.7% measured, so this is the intended effect of a targeted change rather than a scale artifact. v1.1 judged the gap "more likely a capture-and-propagation limit than a surfacing failure"; that reading is consistent with what the fix turned out to require.

Two figures in this table need reading carefully.

capture_rate at 91.9% does not measure capture reliability. All twelve misses are attributed attempted_failed, and they concentrate on two protocols: lc-anchor-region (5 of 5 passes) and lc-flagship-region (4 of 5). The transcripts show memory_capture returning success; the model links the fact to memory.bench.daily_region_revenue rather than the protocol's canonical entity, so the harness's linked-insight check does not find it. This is the mis-filing already recorded in the findings register from the S5 supersede probe, reproducing deterministically as that entry predicted. It is a filing defect, not a capture defect.

The decomposition of transfer that v1.1 called "the natural next measurement" now exists: the fact surfaced to the learner in 68.4% [58.9-77.9] of transfer attempts, and was used in 98.5% of those. The gap between 68.4% surfaced and 98.9% correct is measurement conservatism, not unaided derivation. surfacedTarget (bench/internal/lifecycle/instrument.go:87) requires the stored fact to appear as a normalized substring of a tool result, and is documented as deliberately conservative so it cannot over-report delivery. All thirty correct-but-not-surfaced episodes were checked against their transcripts: in every one the model called search and a tool result carried the protocol's key term. There are no cases of a correct answer without the knowledge reaching the learner.

6. Analysis

The two studies answer different questions and should not be collapsed. The ablation answers "does the layer help, and where?": it helps decisively on knowledge-gated questions (+56 points on S3) and is neutral elsewhere, which is the correct shape for a knowledge layer. It should change answers only when a business fact is the missing input, and it does.

The cold-start study answers "can the platform learn from empty?": from an empty enrichment layer, teaching and promoting six facts lifts trap accuracy from the high-40s to the low-90s, and the per-class trajectories show the lift arriving at each fact's own checkpoint rather than as a diffuse trend. The learning curve is therefore causal at the per-class level, not merely correlational at the aggregate level.

Three mechanisms surface a captured or promoted fact to a later agent, and they matter for interpreting the cold-start trajectories:

1. Entity-anchored enrichment pull. When a tool result names an entity, the platform attaches that entity's DataHub context (descriptions, tags) to the result (pkg/middleware/memory_enrichment.go). This delivers DataHub-sink facts, but only when the agent is already looking at the anchoring entity.
2. Search over knowledge pages. Promoted knowledge pages are retrievable by the search tool (bench/docs/knowledge-layer-protocol.md, "Arms"). This delivers page-sink facts to any agent that searches the topic.
3. Persona-scoped captured memory. Captured insights are surfaced through a persona-scoped memory channel regardless of which sink they were later promoted to (pkg/middleware/memory_enrichment.go).

The third channel is a confound for any "which sink delivers better" reading of the cold-start data: because captured memory surfaces insights independent of sink, the capture-only run (Section 4.4) still climbs, and a naive sink-versus-sink comparison in a capture-plus-promote run is partly carried by this channel. The present runs therefore support the causal per-class learning claim, but they do not cleanly isolate one sink's delivery reliability against another's; that requires the same fact taught through each sink under matched discovery conditions, which is future work.

7. Threats to validity

• Section 5 is measured on a later platform build than Sections 3 and 4. The lifecycle re-run is v1.118.0-4-g445e3abc; the ablation and cold-start are v1.102.x. Differences between Section 5's figures and the v1.1 figures it replaces are across-code, and at least two landed changes act directly on the measured paths (#1129, #1141). No claim in this report compares a Section 5 rate to a Section 3 or 4 rate.
• Lifecycle protocols may supersede each other's insights within a pass. Recall-first supersede matches restatements by vector similarity, all thirty protocols share one database within a pass, and the fixture contains families of near-identical facts (four "total" protocols differing only by period, six "-region" protocols). One run failed with a 409 refusing a superseded → approved transition on a protocol that has no supersede stage of its own, and two protocols show captured-then-recall-failed in 5 of 5 and 2 of 5 passes. The causal link is unproven — the between-pass reset wipes the database and no run records per-insight supersede provenance — so this is a stated threat, not a finding. If real, it depresses recall and transfer for affected protocols and inflates the duplicate rate. Tracked as #1153; the diagnostic is an instrumented pass recording each supersede's source and target. It bears on Section 5 in particular because that section is the first to run thirty protocols rather than fifteen.
• Single model. The cold-start study used one model (sonnet) on one client path. The ablation used one model (claude-sonnet-5) on the API path. All accuracies are model-dependent; the reported effects are within-study, arm-versus-arm or checkpoint-versus-checkpoint, and are never model-versus-model. Generalization across models is future work.
• Two non-comparable client paths. The ablation ran on the Anthropic API adapter and the cold-start on claude-cli. The injected client system prompt and per-release retry policy make the two paths non-comparable on absolute accuracy (bench/docs/knowledge-layer-protocol.md, "claude-cli adapter (subscription, no API key)"). No figure in this report places them on one axis; the baseline floors of the two paths (47-48% API-adjacent cold-start versus the ablation's a0 that has a different task mix) are not compared.
• Build provenance. The ablation ran on v1.102.0-9-gadfb9d90-dirty, the isolated S5 on v1.102.0-10-g32d61254-dirty, and the cold-start on v1.102.1-5-g96169337. This report pins those runs to release tag v1.102.2, whose application code is byte-identical to the cold-start build (verified: git diff 96169337 v1.102.2 -- pkg/ cmd/ internal/ is empty). Relative to the tag, the ablation and S5 builds differ only by portal-pagination plumbing (#974, admin/config/resource list endpoints) and a pprof diagnostic endpoint in cmd/; neither touches the cross-enrichment, search, or knowledge-lifecycle code these suites measure. The -dirty suffix reflects uncommitted benchmark fixtures in the working tree, not application changes. A full re-run against the tag (tracked in #984) would re-measure the same logic under test and is not required for the numbers here to be release-attributable.
• Small seed dataset. The dataset is small and fixed by design (a seeded, airgapped fixture), so absolute accuracies are not real-world estimates. The trap classes are constructed so that a plausible wrong answer exists; this makes the a0 floor low by construction, which is the intended property of a trap suite, not an artifact.
• Bootstrap scope. The confidence intervals model sampling variance over attempts (or protocol-runs) with a fixed seed. They do not model task-selection variance, and for S5 they do not model protocol-level correlation across the k replicates (bench/internal/lifecycle/report.go).
• Small lifecycle denominators. The S5 supersede metrics rest on seven runs (update_correctness, duplicate_rate); their intervals are wide and they are reported as ranges, not point estimates. The committed lifecycle data is the 15-protocol set; the harness has since been extended to 30 protocols, and a re-run on the larger set is the correct basis for a firm lifecycle claim.
• One capture miss. In both cold-start runs the teacher never captured cs-deprecated-table (Section 5, metrics.lessons_captured = 5 of 6). This is a teacher-model miss, not a harness failure; the affected trap was already at ceiling at baseline, so it does not distort the curve, but it is a real capture-reliability data point.
• One excluded transient error. The k = 1 cold-start run recorded one attempt that returned an upstream API 500 and was left ungraded (s3-tier-key-completed at checkpoint 2; harness_failures = 1). It is excluded honestly rather than counted as wrong.
• Distinctive-needle caveat. Any downstream analysis of whether a specific taught fact reached an evaluator must key on distinctive wording of that fact, not on generic tokens (for example cents, integer, plus) that also appear in schema output or SQL. Loose token matching overstates delivery. This report makes no per-token delivery claim; the caveat is recorded for anyone extending the analysis.
• Evaluator isolation. The cold-start runner uses a fresh, never-taught evaluator identity at every checkpoint and treats any evaluator memory write as a validity failure (bench/internal/coldstart/report.go). The headline run recorded harness_failures = 0 and two honestly-recorded audit read-back flags (metrics.audit_read_failures = 2), and completed as a valid full run.

8. Reproducibility

Every figure and every number in this report is regenerated from the committed raw data by bench/reports/knowledge-layer/report.ipynb. The notebook reads only the results.json files under bench/results/; it needs no API key, no running platform, and no network access.

python3 -m venv .venv && . .venv/bin/activate
pip install -r bench/reports/knowledge-layer/requirements.txt
jupyter nbconvert --to notebook --execute --inplace bench/reports/knowledge-layer/report.ipynb

Re-running the notebook rewrites the figures (the canonical copies under bench/reports/knowledge-layer/figures/ and the docs-served copies under docs/reference/benchmark-figures/, which this page embeds) and prints the exact tables quoted above. A mismatch between a number in this document and the notebook's recomputed value is a factual-integrity defect to be fixed in the prose, never in the data.

To reproduce a cold-start run from scratch (a multi-hour job that mutates a live DataHub quickstart), the harness commands are documented in (bench/docs/knowledge-layer-protocol.md, "Cold-start knowledge growth (#963)"); the committed runs above are the artifacts those commands produced.

9. Data availability

Study	Directory
Ablation, S1 to S3	bench/results/phase2-anthropic-k3/full-a{0,1,2,3}/
Lifecycle, S5 (v2.0, k=5)	bench/results/s5-anthropic-k5/ — five independent passes plus the merged scorecard lifecycle-a3-k5.json
Lifecycle, S5 (v1.1, superseded)	bench/results/s5-anthropic-k3-isolated-v2/
Cold-start, K=3 (headline)	bench/results/cold-start-a3-20260717-142008-3064/
Cold-start, K=1	bench/results/cold-start-a3-20260717-085742-89538/
Cold-start, capture-only	bench/results/cold-start-a3-20260716-234306-5181/
Cold-start, baseline replicates	cold-start-a3-20260716-115550-399/, cold-start-a3-20260716-220857-52792/

Each directory carries the run's results.json (or lifecycle-a3.json) and, for most runs, a per-attempt transcript directory. The run manifests record the git commit, platform version, model, client version, seed, and task-set hash for provenance.

10. How to cite this report

This is Report version 2.0, published 2026-08-01. It supersedes Report v1.1 (2026-07-19) by replacing Section 5 with a lifecycle re-run at k = 5 over thirty protocols on platform build v1.118.0-4-g445e3abc, which turns the supersede and transfer figures into point estimates with confidence intervals (#1139). Sections 3 and 4, and every ablation and cold-start statistic, table, and figure in them, are unchanged from v1.1 and still describe v1.102.x. Report v1.1 itself superseded the unpublished v1.0 by pinning the report and its data to release tag v1.102.2 (Section 6), with no statistic changed. Cite an immutable copy rather than a moving branch: the report and the raw data it recomputes from are captured at each tagged release. The permalinked artifact is

https://github.com/txn2/mcp-data-platform/blob/<release-tag>/docs/reference/benchmark-report.md

with the underlying run data at bench/results/ in the same tag; substitute the release tag you are citing (for example v1.102.2). Every run manifest under those directories additionally pins the exact platform build, git commit, dataset seed, and task-set or protocol-set hash that produced its numbers (Section 9), so a citation resolves to a specific, reproducible dataset.

Suggested citation.

Johnston, C. (2026). Does a semantic knowledge layer make an agent measurably better? A reproducible benchmark of the mcp-data-platform knowledge layer (Report v2.0). Deasil Works, Inc. / txn2. https://doi.org/10.5281/zenodo.21438044

BibTeX.

@techreport{johnston2026knowledgelayer,
  author      = {Johnston, Craig},
  title       = {Does a Semantic Knowledge Layer Make an Agent Measurably
                 Better? A Reproducible Benchmark of the mcp-data-platform
                 Knowledge Layer},
  institution = {Deasil Works, Inc. / txn2},
  year        = {2026},
  month       = jul,
  type        = {Evaluation Report},
  number      = {Report v2.0},
  url         = {https://mcp-data-platform.txn2.com/reference/benchmark-report/},
  doi         = {10.5281/zenodo.21438044},
  note        = {Raw run data and reproduction notebook at
                 https://github.com/txn2/mcp-data-platform/tree/main/bench}
}

DOI. This report and a snapshot of bench/results/ are archived on Zenodo under the concept DOI 10.5281/zenodo.21438044, which always resolves to the latest published version and is the preferred citation. Each archived version also carries its own version DOI (the v1.0 snapshot is 10.5281/zenodo.21438045); cite a version DOI to pin an exact snapshot. The tagged repository permalink above remains valid for the source and the raw data.

Errata

• 2026-08-02. Every run in this report executed with fetch absent from every arm persona's tool allow-list (#1176). For the no-discovery arms a0 and a1 that is their ablation design; for a2 and a3, which this report presents as the shipped semantic-first platform, it was a configuration defect (bench/config/platform.bench.a2.yaml and a3.yaml, which likewise omitted list_connections). Measured across all 4,173 archived transcripts: 19 fetch attempts, 19 authorization denials, zero successes. Search results therefore returned document references that were never dereferenced, and knowledge pages' outbound references were never followed: every arm measured the knowledge layer under search-only, single-hop delivery rather than the search-then-fetch surface the platform ships. The denial applied identically to every arm — no arm could traverse — so the reported contrasts are valid as contrasts between arms under search-only delivery; what this narrows is the report's architectural coverage, not any number. The configs now grant both tools, and a config guard (bench/config/config_test.go) enforces it, so future runs measure the shipped delivery surface. No statistic, figure value, or conclusion changed, so the report version is unchanged and the deposited snapshots are unaffected.
• 2026-08-01 (version 2.0.1). Typesetting only. The v2.0 deposit's PDF rendered the Section 5 table with its columns overflowing, so metric names overprinted their own values; the markdown, the HTML, and every statistic were unaffected. The render filter had no width rule for the five-column table v2.0 introduced and silently fell back to defaults. No statistic, figure value, or conclusion changed.
• 2026-08-01 (version 2.0). Section 5 was replaced with a lifecycle re-run at k = 5 over thirty protocols on platform v1.118.0-4-g445e3abc (#1139), and the identity-pool figure in Section 2.5 was updated from 264 to 320 keys to match the configuration that run required. Statistics in Sections 3 and 4 are unchanged. Because Section 5's statistics did change and the report now spans two platform builds, this is a version bump rather than an erratum, and it mints a new version DOI under the existing concept DOI. The v1.1 lifecycle data remains committed at bench/results/s5-anthropic-k3-isolated-v2/.
• 2026-07-29. The harness citations throughout this report were repointed from line numbers in bench/README.md to named sections of bench/docs/knowledge-layer-protocol.md, which is where that protocol prose now lives. Line-number targets into a file that keeps changing do not stay valid; section names are checked mechanically by TestHarnessCitationsResolve. No statistic, figure, table value, or conclusion changed, so the report version is unchanged at 1.1 and the deposited snapshots are unaffected. (v1.1 was never deposited; the deposited versions are v1.0 and v2.0.)

11. Related work

The evaluation reuses two established methods. SQL-producing tasks are graded by execution-result comparison and organized into difficulty tiers following BIRD (Li et al., 2023), the large-scale text-to-SQL benchmark that established execution accuracy over exact string match. Reliability across repeated trials is reported with pass^k, the metric introduced by tau-bench (Yao et al., 2024) for tool-agent-user interaction. The knowledge-layer capabilities the S5 protocols probe (capture, cross-session recall, knowledge updates, cross-identity transfer, and abstention) are the failure modes studied in the long-term memory literature: LOCOMO (Maharana et al., 2024) evaluates very long-term conversational memory, and LongMemEval (Wu et al., 2025) isolates knowledge updates and abstention in particular. Production memory systems such as Mem0 (Chhikara et al., 2025) and Zep (Rasmussen et al., 2025) target the same capture-and-propagation problem from the systems side. This study differs in scope: rather than comparing memory systems on a shared conversational corpus, it ablates one platform's knowledge layer on a fixed, seeded data-analysis task suite, and, consistent with the threats above, draws no cross-study or cross-model comparison.

12. References

• Chhikara, P., Khant, D., Aryan, S., Singh, T., & Yadav, D. (2025). Mem0: Building Production-Ready AI Agents with Scalable Long-Term Memory. arXiv:2504.19413. https://arxiv.org/abs/2504.19413
• Li, J., Hui, B., Qu, G., et al. (2023). Can LLM Already Serve as a Database Interface? A BIg Bench for Large-Scale Database Grounded Text-to-SQLs. Advances in Neural Information Processing Systems 36 (NeurIPS 2023), Datasets and Benchmarks Track. https://papers.nips.cc/paper_files/paper/2023/hash/83fc8fab1710363050bbd1d4b8cc0021-Abstract-Datasets_and_Benchmarks.html
• Maharana, A., Lee, D.-H., Tulyakov, S., Bansal, M., Barbieri, F., & Fang, Y. (2024). Evaluating Very Long-Term Conversational Memory of LLM Agents. Proceedings of the 62^nd Annual Meeting of the Association for Computational Linguistics (ACL 2024). https://aclanthology.org/2024.acl-long.747/
• Rasmussen, P., Paliychuk, P., Beauvais, T., Ryan, J., & Chalef, D. (2025). Zep: A Temporal Knowledge Graph Architecture for Agent Memory. arXiv:2501.13956. https://arxiv.org/abs/2501.13956
• Wu, D., Wang, H., Yu, W., Zhang, Y., Chang, K.-W., & Yu, D. (2025). LongMemEval: Benchmarking Chat Assistants on Long-Term Interactive Memory. The Thirteenth International Conference on Learning Representations (ICLR 2025). https://arxiv.org/abs/2410.10813
• Yao, S., Shinn, N., Razavi, P., & Narasimhan, K. (2024). tau-bench: A Benchmark for Tool-Agent-User Interaction in Real-World Domains. arXiv:2406.12045. https://arxiv.org/abs/2406.12045
